Technical Data

Total Living Area: 16 m2
Medium Height: 250 cm
Width: 400 cm
Length: 400cm
Door Height: 200 cm
Total Weight: 85 kg

The standard model of the tent offers 16 m² of space; However, it can also be produced in special sizes according to different needs and usage areas. It is possible to offer solutions in different sizes and designs in line with customer demands, thus providing a flexible and practical shelter solution suitable for all requirements.

The skeletal structure of the tent is provided by pipes made of aluminum material. The standard tent frame is specially designed for ease of assembly and portability. However, frame structures can be designed and produced in different sizes, thicknesses and features (for example, increased load capacity or suitability for special climatic conditions) in line with the special requests of our customers. In this way, it is possible to provide flexible and reliable tent frame solutions that suit the unique requirements of each project.

The outer material of the tent is manufactured to high standards for durability and longevity. The standard model consists of a tarpaulin with a 100% polyester base and PVC coated on both surfaces. This material is white in color and its areal density is 500 gr/m². In addition, thanks to its UV protection, it is resistant to ultraviolet rays and has anti-yellowing properties. According to customer demands, external material solutions suitable for all needs and usage conditions are offered by adding different color options, material densities and additional features (fire retardant, extra UV protection, etc.).

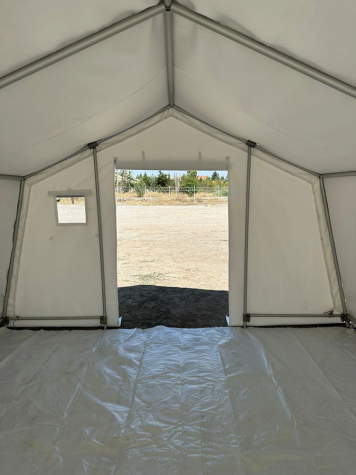

The insulation material is made of 200 gr/m² air bubble bisophilic aba. The lining material is 70 gr/m² non-woven spunbond P.P fabric. The lining material is laid on the skeleton and fixed to the skeleton by tying it with drawstrings.
